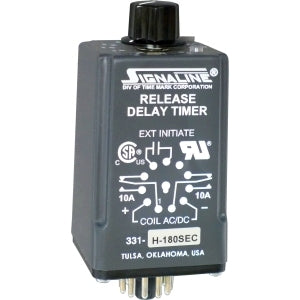

331-L-180SEC RELEASE DELAY TIMER

In stock
SKU: 98084803
Regular price $84.75 inc. VAT
Regular price Sale $91.00 Sale price $84.75 inc. VAT

The Models 331 and 361 Release Delay Timers are designed for a wide usage in new or replacement industrial applications. Examples include delay-off circuits, batch processing circuits, and other applications requiring a remote-triggered, off-delay timer. The Model 331 is a DPDT potentiometer (knob-adjust) timer. The Model 361 is a DPDT, high-accuracy digital input timer. Solid-state timing circuits in each model drive an internal electromechanical relay. Each model is functionally interchangeable. They are available in a variety of voltage and timing ranges to cover any application. An SG version of this model is available using silver with gold flash contacts.

Models 331 and 361 are UL Recognized and CSA Certified.

Certifications

CSA and UL

Contacts

DPDT

Mount

11-Pin

Timing Range

1 – 180 Sec.

Timer Function

Release Delay Timer

Voltage Range

10-28VAC/VDC
