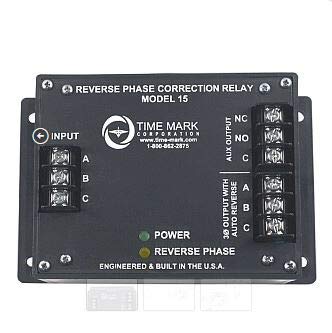

Time Mark 15-240 Reverse Phase Relay

In stock
SKU: 15-240
Regular price $136.50 inc. VAT

The Time Mark Model 15 was designed to protect your valuable equipment from the damaging effects of phase reversal by sensing and automatically correcting for phase reversal. Under normal power conditions, incoming A B C voltage is passed straight through the device to the A B C output terminals (4 amps @ 480 VAC resistive max). If the unit detects an incoming reverse phase condition (C B A), it will light the reverse phase LED and internally switch 2 of the phases and then pass the corrected phasing out to output terminals A B C. If your load is higher than 4 amps @ 480VAC resistive.

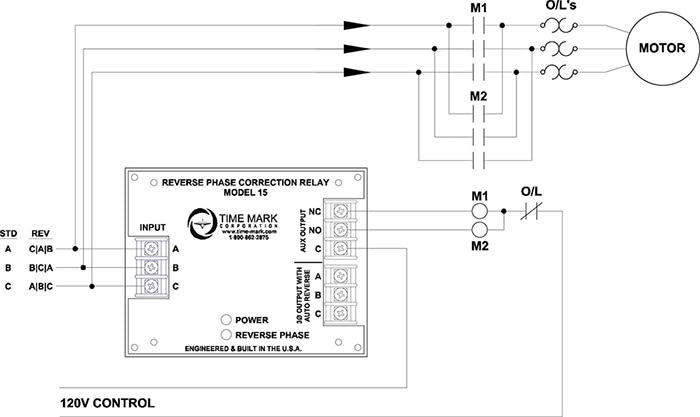

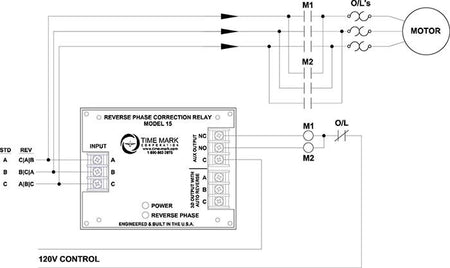

The Model 15 provides an auxiliary output relay to put in the control circuit of a remote reversing contactor. If phasing is correct, the relay will remain in the static condition (N.C contact will remain closed and N.O. will remain open). If the Model 15 detects a reverse phase input, the auxiliary output relay will energize and the relay contacts will switch (N.C contact will open and N.O. will close).

Manufacturer Specs

Model 15-240
Nominal voltage (phase to phase) 240VAC
Operating range ± 10%
Frequency 50 to 60Hz
Power consumption 2W per phase
Transient protection 2500V for 10ms
Repeat accuracy ± 0.1% (fixed conditions)
Response time .05 seconds
Reset time .05 seconds
Reset type Automatic
Dead Band Approximately 2%


Output contacts (AUX)

Output contacts (3 Phase)                   SPDT 10A at 240VAC resistive
                                                            3P3T 4A at 480VAC resistive

Expected relay life
Mechanical:                                       10 million operations
Electrical:                                          100,000 at rated load

Operating temperature                        - 20° to +140° F

Humidity tolerance                             0 - 97% w/o condensation

Case material                                      NORLY

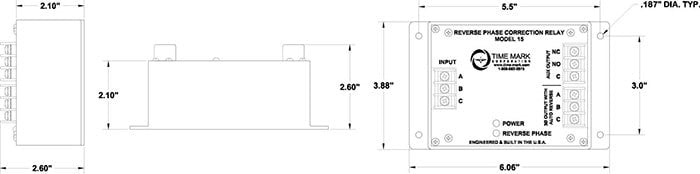

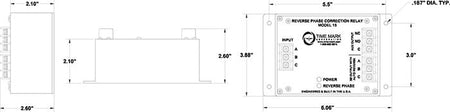

Mounting                                           Surface Mount

Weight                                               15.9 oz.

Tech Specs
Three Phase Monitor Relays

3-Phase Monitor Relay Function Phase Reversal Only
Max Nominal Phase to Phase Voltage (monitors) 240 VAC
Min Nominal Phase to Phase Voltage (monitors) 240 VAC
Time Mark Mounting Surface Mount
