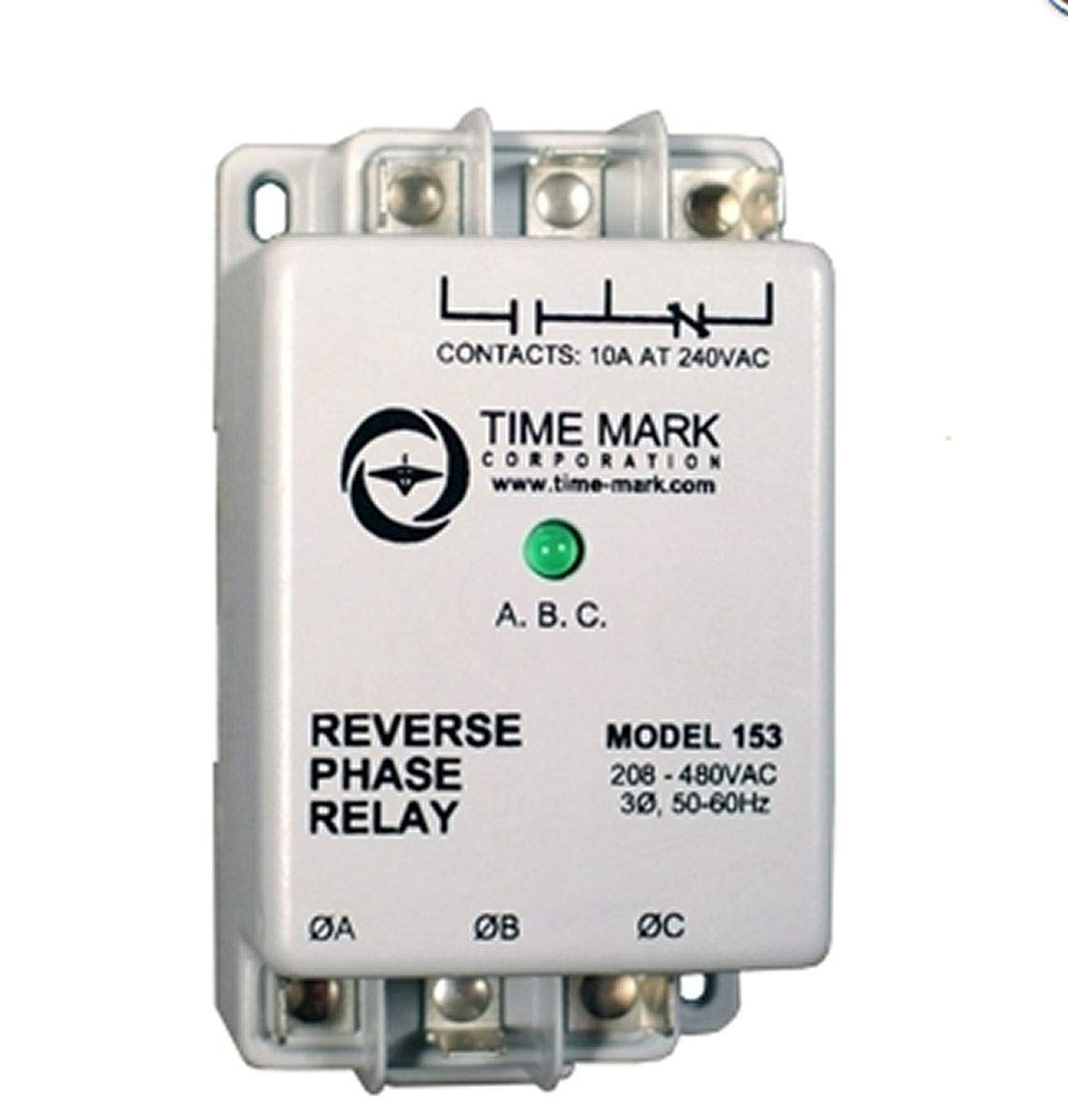

Time Mark 153 Three Phase Monitor

In stock
SKU: 153
$86.00 inc. VAT
  • Senses phase reversal on Wye or Delta
  • Low power consumption
  • DIN Rail Mount or Surface-mount
  • monitor phase rotation of 3-phase lines.
  • 190 to 500 VAC range

    The Time Mark 153 Reverse Phase Relay is designed to continuously monitor the phase rotation of 3-phase lines. This device should be used in applications where proper phase rotation is critical, such as fan motors, compressors, grinders, elevators, etc. The solid-state sensing circuit drives an internal electromechanical relay which energizes when power, with correct phase rotation, is applied. The relay will not energize if the applied phases are reversed. It will de-energize if phase rotation is reversed while the motor is running. An LED indicator will illuminate with the correct ABC phase rotation.

    Manufacturer Specs

    Model: 153 Specifications

    Description             Reverse Phase Relay

    Automatic Reset    Yes

    Manual Reset         No

    Phase Sensing         Phase Reversal

    Nominal voltage     190-500 VAC (phase to phase)

    Frequency               50 to 60Hz

    Power Consumption   2W per phase

    Transient protection    2500 VRMS for 10ms

    Repeat accuracy     ± 0.1 % (fixed conditions)

    Response time        .05 seconds

    Reset time              .05 seconds

    Dead band              Approximately 2%

    Output contacts      SPDT 10A at 240VAC resistive

    Expected relay life Mechanical: 10 million operations
    Electrical:  100,000 at rated load

    Operating temp      - 20º to +131º F

    Humidity tolerance 0-97% w/o condensation

    Case material          ABS plastic

    Mounting                DIN Rail or Surface Mount

    Weight                    4 oz.

    Tech Specs

    Three Phase Monitor Relays

    3-Phase Monitor Relay Function              Phase Reversal Only

    Max Nominal Phase to Phase Voltage (monitors)            500 VAC

    Monitor Relay Contact Type  SPDT

    Time Mark Mounting               DIN, Surface Mount

    Test Equipment General Attributes

    Warranty                                        5 YEARS

    Warranty Details                         This product is warranted to be free from defects in materials and workmanship, and is covered by our exclusive 5-year Unconditional Warranty.

    Product Weight                           0.25 LBS

    Product Height                            3.71 IN

    Product Length                            2.19 IN

    Product Width                             2.31 IN

    Country of Origin                       United States
