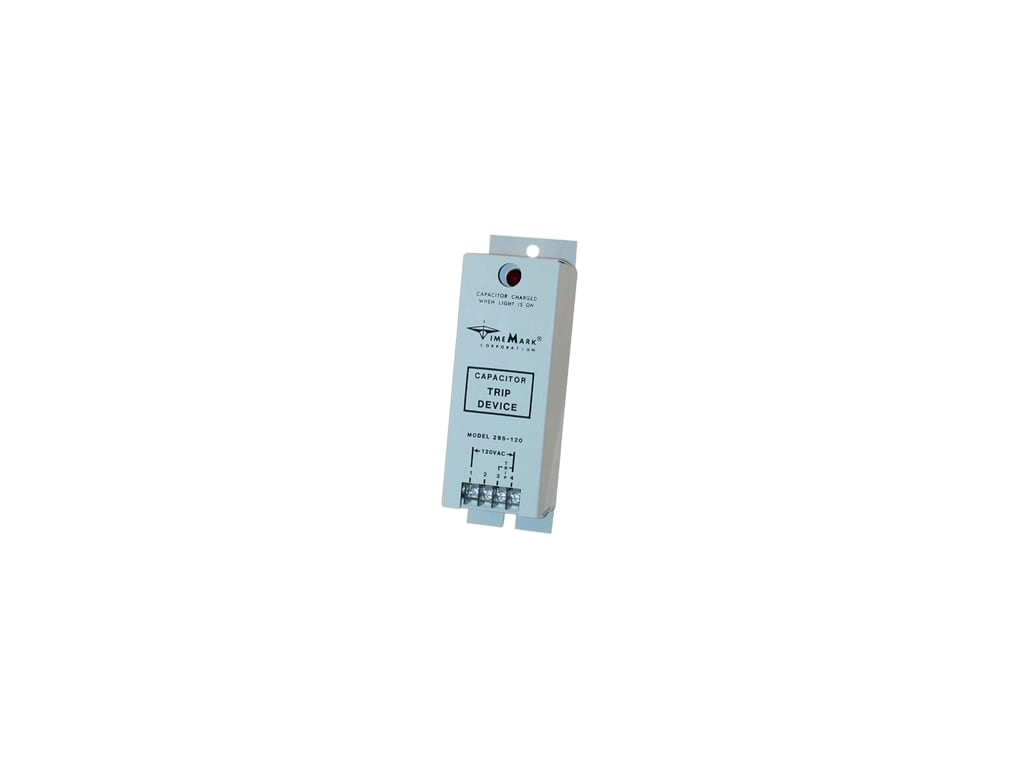

Time Mark 295-240 - Capacitor Trip Device (240V)

In stock
SKU: 98017901
Regular price $195.00 inc. VAT

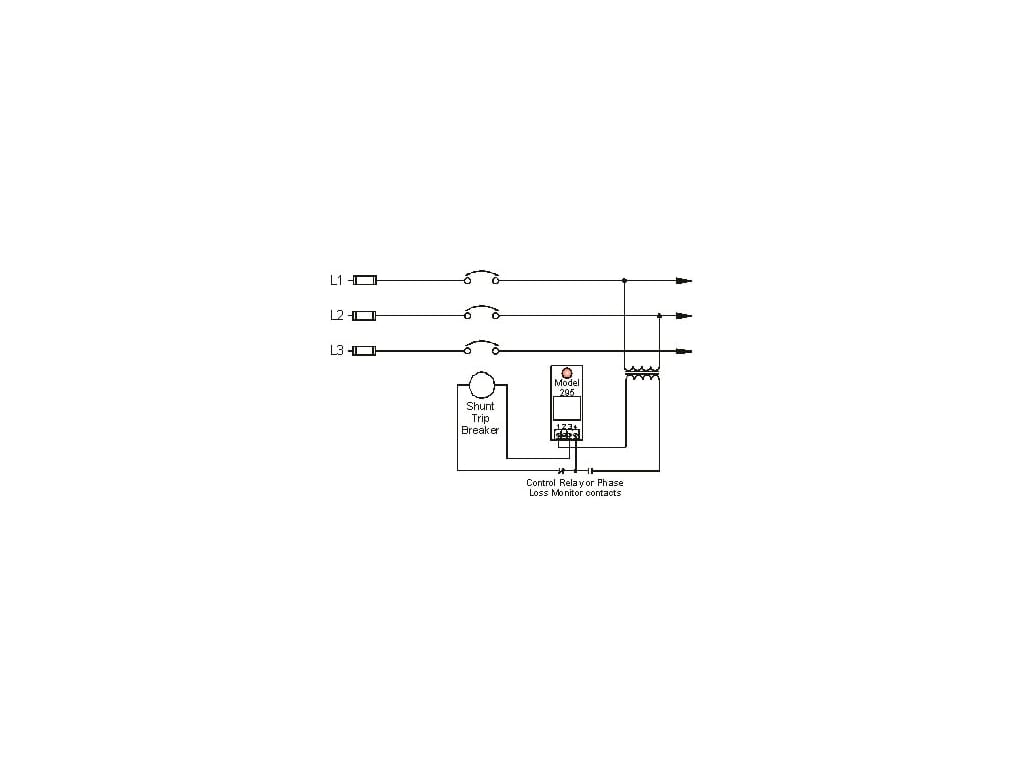

The Model 295-240 Capacitor Trip Device is used to trip circuit breakers requiring an AC voltage, by using the stored energy in a capacitor. The capacitor is kept at full charge during normal operation by a half-wave silicon rectifier which draws its energy from the power line. When completely discharged, the Model 295-240 draws approximately 10 amps from the line in the first half cycle, 3 amps in the second half cycle, and 1 amp from the third. The continuous current required to keep the capacitor charged is less than 5 milliamps. The capacitor holds sufficient charge to trip the breaker for at least 12 seconds after the charging voltage is removed. However, on most fault conditions, some voltage is still present, so the Model 295-240 is designed so that 65% of normal voltage gives sufficient charge to trip the breaker. A low-energy lamp, connected in parallel with the storage capacitor, gives a visual indication when the voltage charge is 85 volts or more on the 120V version and 170 volts or more on the 240V version.

  • Nominal input voltage: 240VAC
  • Input voltage range: 190 - 240VAC
  • Output voltage: 339VDC
  • Frequency range: 50 - 400Hz

Manufacturer Specs


Capacitor Trip Device

Nominal input voltage


Input voltage range

190 - 240VAC

Output voltage


Frequency range

50 - 400Hz

Operating temperature

-20º to +131º F

Humidity tolerance

0-97% w/o condensation

Case material

20 Gauge CRS




2 lbs.

Tech Specs

Test Equipment General Attributes

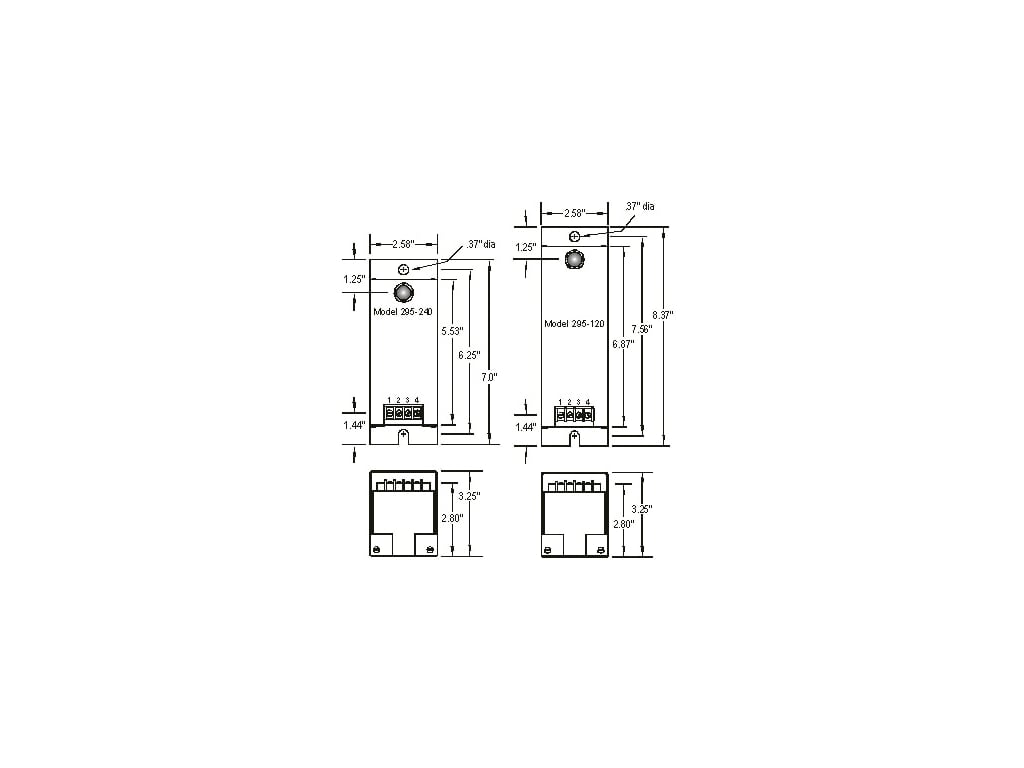

Product Weight


Product Height

7 IN

Product Length

2.58 IN

Product Width

3.25 IN

Country of Origin

United States

Shipping Height

7 IN

Shipping Length

2.58 IN

Shipping Width

3.25 IN
