Time Mark 360-H-0.1SEC - Operate Delay Timer
Couldn't load pickup availability
- Voltage: 40-260V AC/DC
- Timing range: 0.1 - 102.3 Sec.
- DPDT, High-accuracy digital input timer
- Accuracy: ± 2%
- Repeatability: ± 01%
- Recycle time: 100ms
- Solid-State Design
- 10 Amp Relay Contacts
- 5-Year Unconditional Warranty
Time Mark 360-H-0.1SEC - Operate Delay Timer
- Voltage: 40-260V AC/DC
- Timing range: 0.1 - 102.3 Sec.
- Recycle time: 100ms
- DPDT, High-accuracy digital input timer
The model 360-H-0.1SEC Operate Delay Timer is a DPDT, high-accuracy digital input timer designed for a wide range of industrial applications. Examples include automatic and machine tool control circuits, HVAC circuits, and warm-up delay circuits. Solid-state timing circuits in each model drive an internal electromechanical relay. This model is functionally interchangeable. It is UL Recognized and CSA Certified.
Manufacturer Specs
|
Description |
Operate Delay Timer |
|
Voltage |
40-260V AC/DC |
|
Timing range |
0.1 - 102.3 Sec. |
|
Accuracy |
± 2% |
|
Repeatability |
± 0.1% |
|
Recycle time |
100ms |
|
Operating temp |
-20°F to 140°F |
|
Contacts |
DPDT |
|
Contact rating |
10A at 240VAC resistive |
|
Transient protection |
775V, 80 Joules |
|
Humidity tolerance |
0 - 97% w/o condensation |
|
Enclosure material |
NORYL Plastic |
|
Mounting |
8-pin socket (*not included) ** |
|
Weight |
5 oz. |
|
Agency approval |
UL Recognized and CSA Certified |
|
Additional Options |
/C = Custom (Voltage and/or Timing) |
Tech Specs
|
Time Delay Relays |
|
|
Timer Function (timers) |
Operate Delay Timer |
|
Nominal Voltage (monitor relays) |
40-260 VAC/VDC |
|
Time Mark Mounting |
8-pin |
|
Electrical Approval (monitor relays) |
CSA, UL |
|
Test Equipment General Attributes |
|
|
Warranty |
5 YEARS |
|
Warranty Details |
This product is warranted to be free from defects in materials and workmanship, and is covered by our exclusive 5-year Unconditional Warranty. |
|
Safety Approval |
CSA, UL |
|
Product Weight |
0.31 LBS |
|

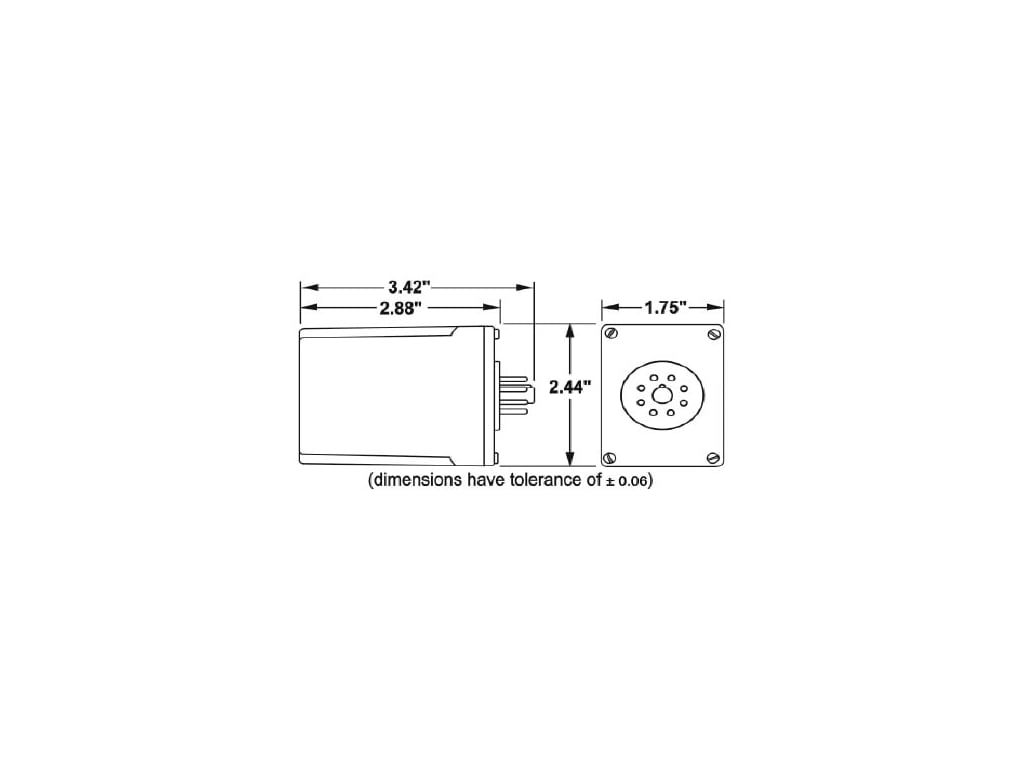

Product Height |
3.42 IN |
|
Product Length |
2.45 IN |
|
Product Width |
2.24 IN |
|
Country of Origin |
United States |
|
Shipping Height |
3.60 IN |
|
Shipping Length |
2.45 IN |
|
Shipping Width |
1.75 IN |
|
Product Attribute |
Attribute Value |
|
Alternate Mfr Part Number |
98086101 |
|
Brand |
Time Mark Corporation |
|
Manufacturer Part Number |
360-H-0.1SEC |
|
UPC Code |
662917005648 |
