Time Mark AC260B-80-130 Voltage & Frequency Monitor
Regular price
$69.63
inc. VAT
Couldn't load pickup availability

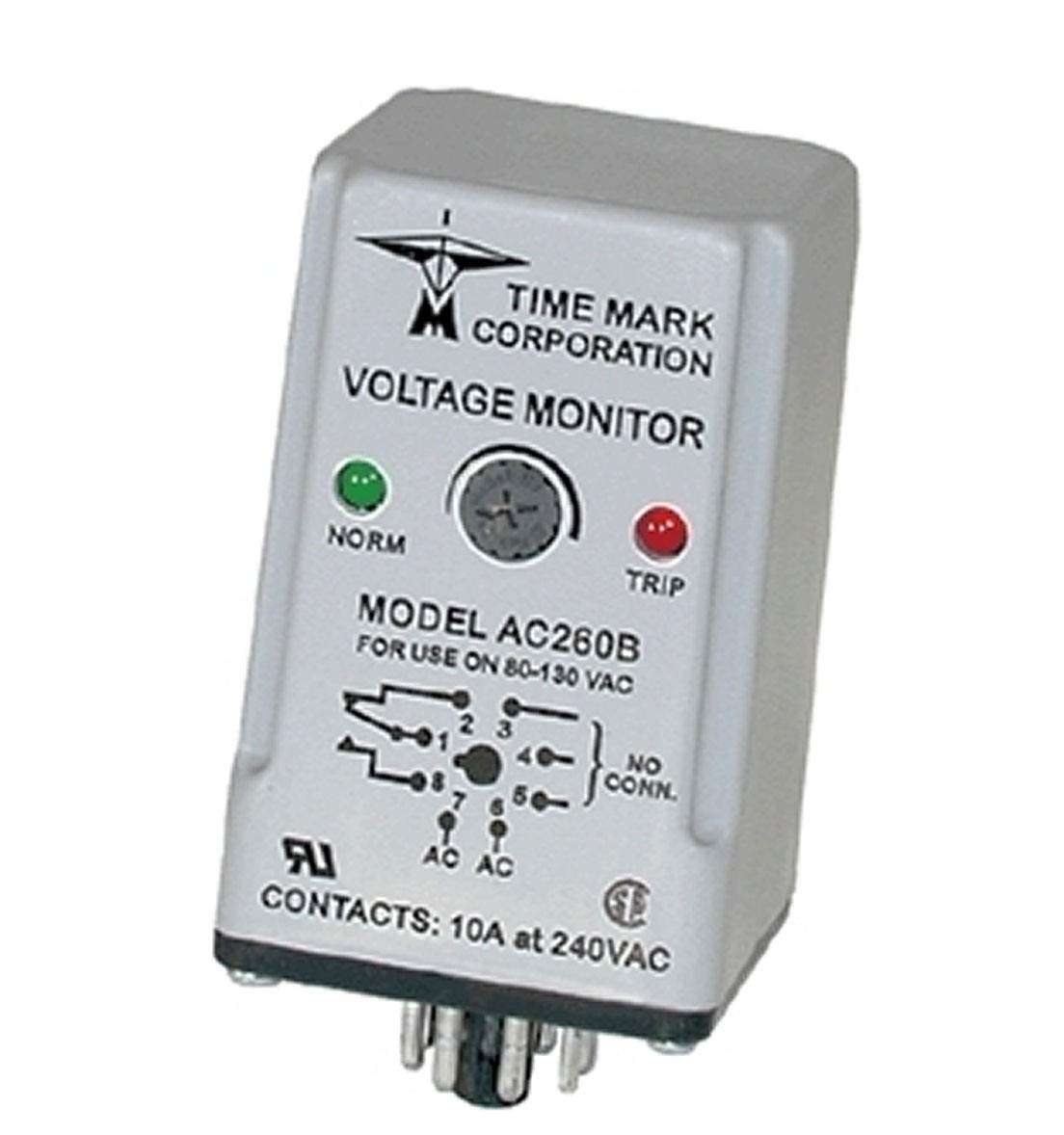

Time Mark AC260B-80-130 - Voltage Sensor, 120VAC
Single set-point voltage sensor
- Voltage Range: 120VAC
- Automatic Reset
- Screwdriver adjustable
- Monitors for Over or Under Voltage
- UL Recognized and CSA Certified
- 5-Year Unconditional Warranty
The Time Mark 260 Voltage Sensor is a single set-point voltage sensor. The AC260B-80-130 model is an AC version with a voltage range of 120VAC. Input voltages above the set-point cause the output contacts to energize (contacts 1 & 8 closed). Input voltages below the set-point cause the output contacts to de-energize (contacts 1 & 2 closed). The dead band between pull-in and drop-out is less than 2%.
The standard unit has a screwdriver, or fingertip adjustable set-point range of approximately 35%. of the maximum voltage. This device can also be provided with a factory calibrated trip point.
AC versions of the Model 260 Voltage Sensor are not frequency sensitive, and may be used in systems from 50 Hz to 400 Hz. DC models are not polarity sensitive. This device requires a standard 8-pin socket, such as Time Mark’s Model 51X120.
The standard unit has a screwdriver, or fingertip adjustable set-point range of approximately 35%. of the maximum voltage. This device can also be provided with a factory calibrated trip point.
AC versions of the Model 260 Voltage Sensor are not frequency sensitive, and may be used in systems from 50 Hz to 400 Hz. DC models are not polarity sensitive. This device requires a standard 8-pin socket, such as Time Mark’s Model 51X120.
Typical Application:
