The Models 330 and 360 Operate Delay Timers are
designed for a wide range of industrial applications.
Examples include automatic and machine tool control
circuits, HVAC circuits, and warm-up delay circuits. The
Model 330 is a DPDT potentiometer (knob-adjust) timer.

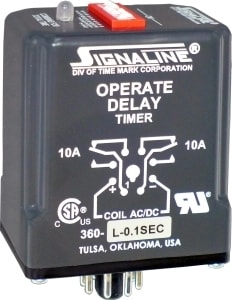

The Model 360 is a DPDT, high-accuracy digital input
timer. Solid-state timing circuits in each model drive an
internal electromechanical relay.
Each model is functionally interchangeable. They are
available in a variety of voltage and timing ranges to cover
all possible applications.
An “SG” version of this model is available using silver with
gold flash contacts.
Models 330 and 360 are UL Recognized and CSA
Certified.
⚫ Solid-State Design
⚫ 10 Amp Relay Contacts
⚫ Multiple Voltage and Timing Ranges
⚫ 5-Year Unconditional Warranty
MODEL 330
MODEL 360
Operate Delay Timers
SPECIFICATIONS
MODEL 330 (knob adj.) 360 (digital)
Voltage L = 10-28V AC/DC
H = 40-260V AC/DC
Timing range 10SEC: 1 - 10 Sec.
60SEC: 1 - 60 Sec.
180SEC: 1 - 180 Sec.
300SEC: 1 - 300 Sec.
0.1SEC: 0.1 - 102.3 Sec.
1SEC: 1 - 1023 Sec.
1MIN: 1 - 1023 Min.
1HR: 1 - 1023 Hr.
Accuracy ± 5% ± 2%
Repeatability ± 2% ± 0.1%
Recycle time 100ms
Operating temp -20°F to 140°F
Contacts DPDT
Contact rating 10A at 240VAC resistive
Transient protection 775V, 80 Joules
Humidity tolerance 0 - 97% w/o condensation
Enclosure material NORYL Plastic
Mounting 8-pin socket (*not included) **
Weight 5 oz.
Agency approval UL Recognized and CSA Certified
Additional Options /C = Custom (Voltage and/or Timing)
/SG = Silver with Gold Flash Contacts
** order 8-pin socket number 51X120TIME MARK is a division of
